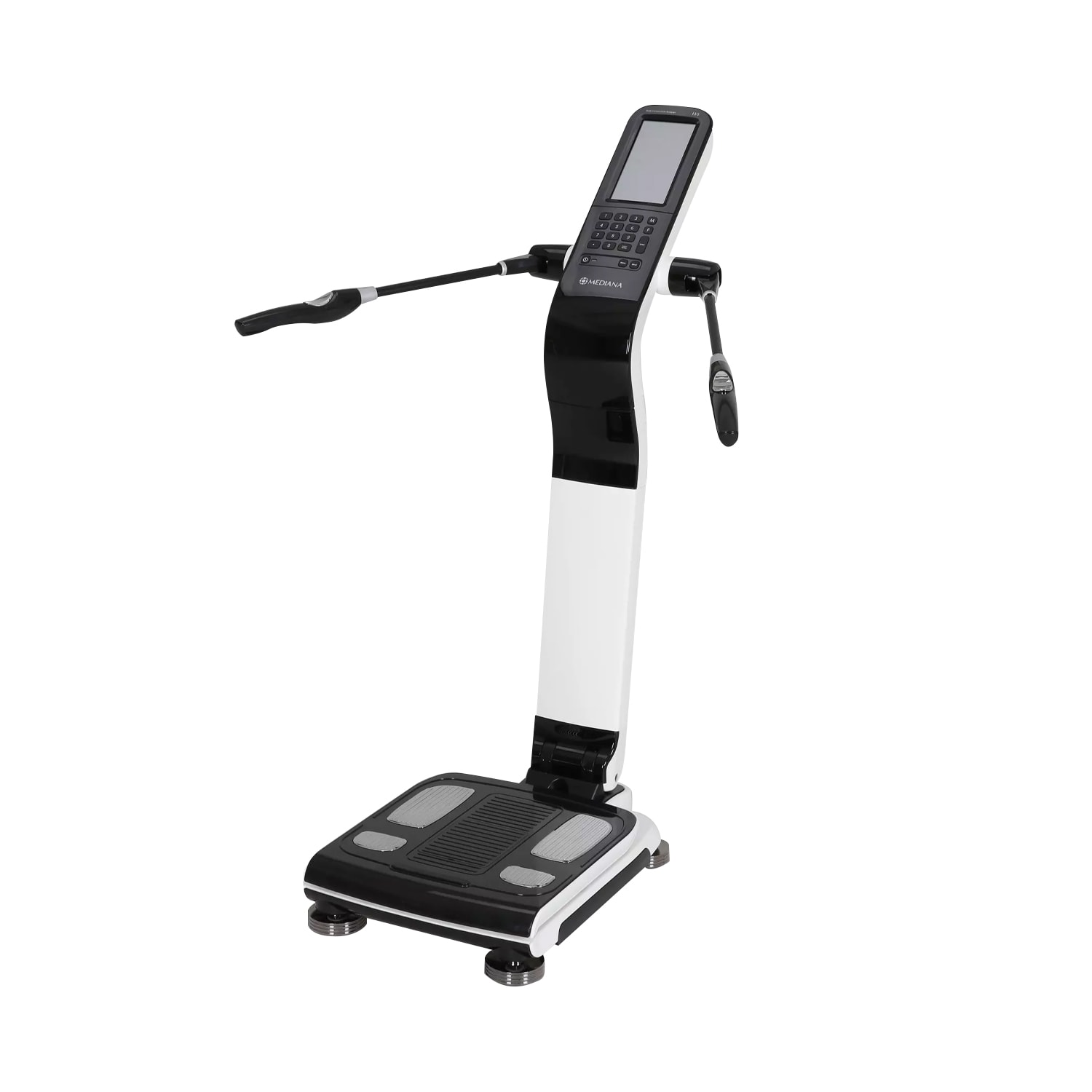

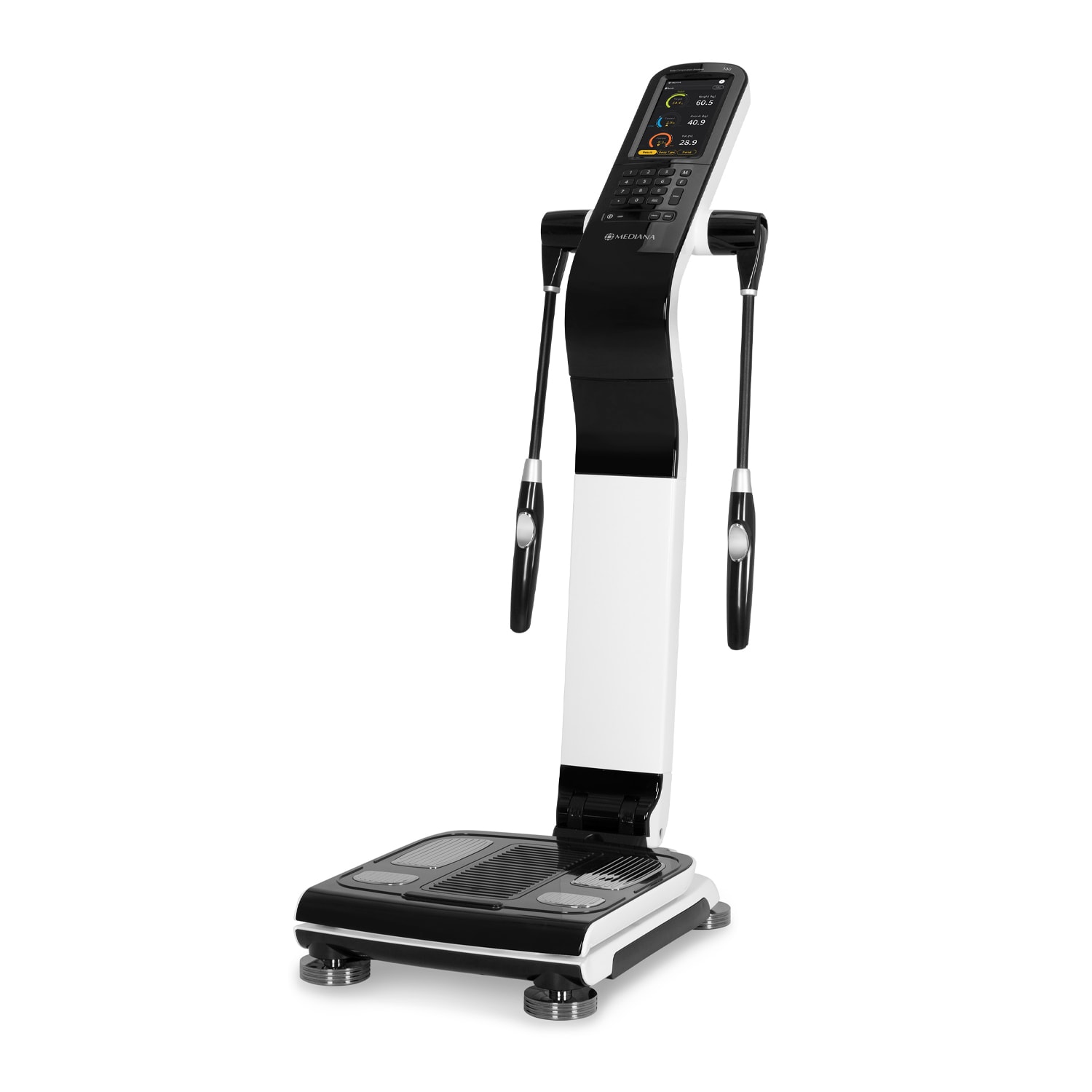

• Model - I30
• Multi-frequency analysis
• Segmental body composition analysis
• Accurate body composition analysis algorithm
• User-friendly GUI design
• Convenient patient data management
• Ergonomic design
• Age-specific analysis
• Blind mode

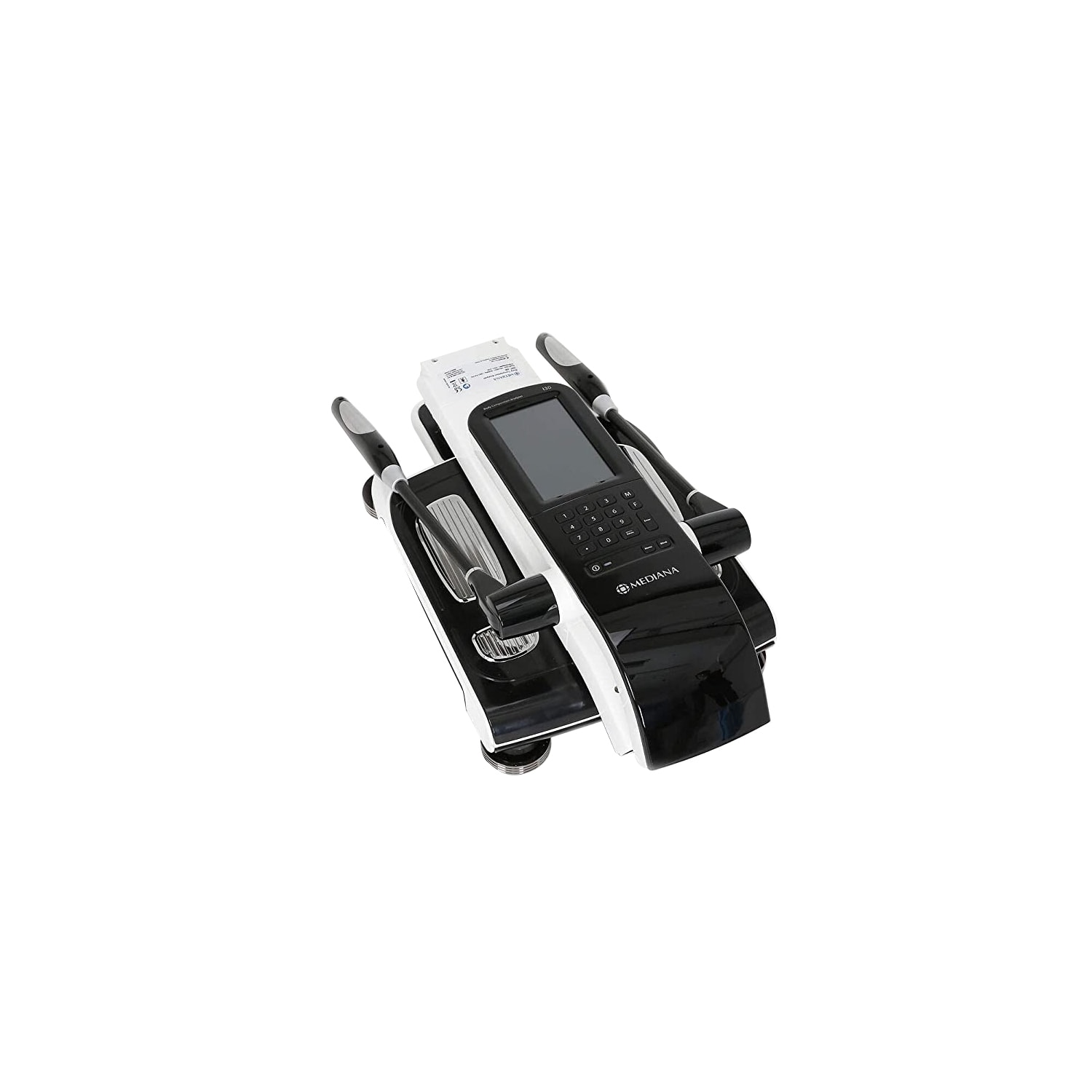

• Portable, foldable design
• Systematic body composition analysis
• Analysis Results Sheet :
• Body Composition Analysis
• Muscle & Fat Analysis
• Segmental Analysis & Body Balance
• Body Type Analysis
• Body Composition Trend
• Weight Control
• Abdominal Fat Analysis
• Mediana Score & Segmental Mass
• Calories Consumption
• Intake & Consumed Calories

SPECIFICATIONS

• Electrode Type : Tetra-polar electrode method using 8 point electrodes
• Measurement Method : Segmental measurement using multi-frequency
• Communication : RS-232, USB, Wi-Fi, Bluetooth, LAN

Measurement & Analysis Items [General result] :

• Body Composition Analysis: Total Body Water, Muscle Mass, Fat Mass, Fat Free Mass, Protein, Mineral, Skeletal Muscle
• Muscle & Fat Analysis : Weight, Muscle, Body Fat(%) Assessment with previous result
• Segmental Analysis : Segmental Muscle, Fat, and Body Balance Assessment
• Body Type Analysis : Body Type Table, Body Type Graph Assessment with previous result
• Body Composition History : History Graph for Weight, Muscle, and Body Fat
• Weight Control : BMI, Obesity Degree, Desirable Weight, Weight/Fat/Muscle Control
• Visceral Fat & Abdominal Fat Ratio Assessment
• Intake & Consumed Calories : BMR, Resting Energy Expenditure, Calorie Consumption, and Fat Burning
• Mediana Score, Segmental Weight and Impedance, Calorie Consumption table per Exercise

Measurement & Analysis Items [Children result] :

• Body Composition Analysis : Total Body Water, Muscle Mass, Fat Mass, Fat Free Mass, Protein, Mineral, Skeletal Muscle
• Muscle & Fat Analysis : Weight, Muscle, Body Fat(%) Assessment with previous result
• Growth Chart : Height and Weight with 18 years old Predicted Value
• Body Composition History : History Graph for Weight, Muscle, Body Fat, Height, and Mineral
• Weight Control : BMI, Obesity Degree, Desirable Weight, Weight/Fat/Muscle Control
• Growth Evaluation : Muscle, Skeletal, Obesity Evaluation
• Body Balance : Upper and Lower Body balance Analysis
• Mediana Score, Segmental Muscle and Impedance
• Measurement Frequency : 5, 50, 100kHz
• Measurement Current : 200uArms
• Measuring range : 10 ~ 1000?
• Measured weight : 2.0~250.0 kg (Resolution 50g)
• Range of height : 60.0~220.0 cm
• Input interface : Keypad, Touch Screen, Barcode reader
• Addition Function : Data Backup and Restore to USB, and DB export to CSV file
• Supported printer : Laser Printer recommended by MEDIANA
• External interface : RS232C(9Pin Serial) 1ea, USB host(type A) 2ea, Mini-USB B(type B) 1ea, Bluetooth(Optional), Wi-Fi(Optional)
• Measurement Time : About 30 sec.
• Age of Use : 3~99 years old
• Weight Measurement : 2~250 kg (resolution : 50g)
• Display : 7inch(600 x 1024), Color Touch LCD
• Dimension : 360mm(W) x 559mm(D) x 1077 mm(H)
• Weight : About 17.5kg
• Operating Environment : Temp 10°C ~ 40°C, Humidity 30%~75%, Air pressure 70 ~ 101.3 kpa
• Storage Environment : Temp -10°C ~ 60°C, Humidity 10%~80%, Air pressure 50 ~ 101.3 kpa
• Supporting Result Sheet : General Result, Children Result
