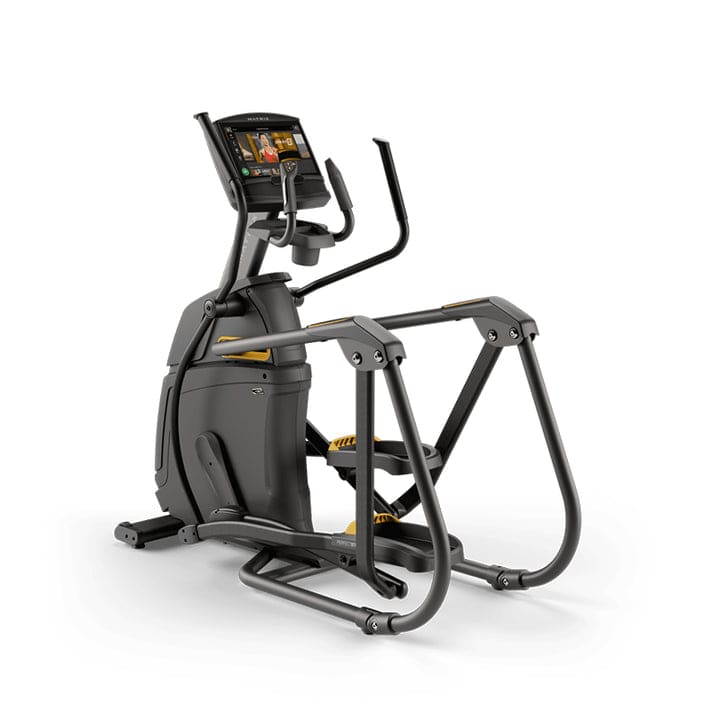

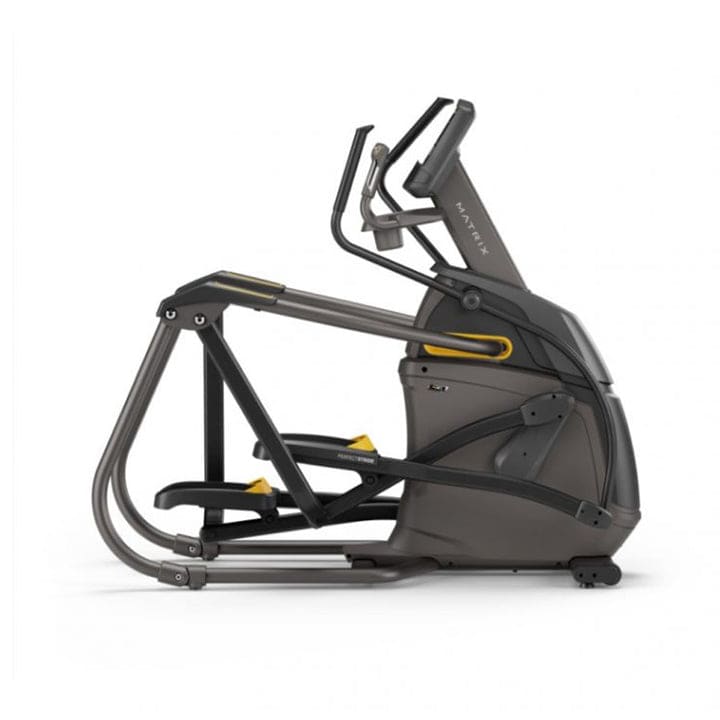

MATRIX Ascent Trainer A30 - XIR Console

Count on Matrix exclusive Suspension Elliptical Technology and PerfectStride® Motion for an exceptionally smooth, ultra-comfortable exercise experience as you adjust incline to target the muscles you want to work most.

PERFECTSTRIDE MOTION

• PerfectStride combines an ideal stride motion and ergonomically correct foot positioning with a variable stride length for a smooth, natural workout experience as you adjust incline to target the muscles you want to work most.

CONVENIENCE FEATURES

• Includes a water bottle holder, accessory tray, heart rate grips, resistance toggles, dual-action handlebars and oversized pedals.

SUSPENSION ELLIPTICAL TECHNOLOGY

• Suspension Elliptical Technology features a wheel- and track-free design to reduce noise and friction for long-lasting quality while providing a smooth, consistent feel through the ellipse.

POWER INCLINE

• An adjustable incline range (24%–54%) adds an element of challenge and activates more muscles, integrating strength-building exercise into your cardio workout.




SPECIFICATION

FRAME TYPE	Ascent Trainer
HANDLE BAR	Dual action, stationary with resistance / incline toggles and heart rate grips
FLYWHEEL WEIGHT	13.5 kg / 30 lbs.
PEDAL TYPE	Oversized
PEDAL SPACING	6.5 cm / 2.6”
RESISTANCE SYSTEM	ECB magnetic braking system
RESISTANCE RANGE	20 levels, electronically adjustable
STEP-ON HEIGHT	22 cm / 8.7”
STRIDE LENGTH	51–61 cm / 20”–24”
USER WEIGHT CAPACITY	159 kg / 350 lbs.
PRODUCT WEIGHT	142 kg / 313 lbs.
DIMENSIONS (L x W x H)	191 x 73 x 164 cm / 75.2” x 29” x 65”
EXTRAS	Water bottle holder, accessory tray

CONSOLE XIR

DISPLAY	16” class HD capacitive touchscreen (40 cm)
WIFI ENABLED	ViewFit Connectivity, entertainment apps, software updates
BLUETOOTH ENABLED	Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor
HDMI PORT	Connect streaming media devices, phones or tablets
USB PORT	Front: Use to access media from compatible devices and to install software updates. Rear: Not active
SPEAKERS	5 Watt
CONSOLE APPS	My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook,Twitter, Instagram, MyFitnessPal, Weather, Web Browser,Kindle Reader, Flipbook, Press Reader, Solitaire Suite, WeChat,YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
PASSPORT READY	No
VIAFIT CONNECTIVITY	Yes
HEART RATE	Bluetooth wireless heart rate, Bluetooth heart rate strap included
CONSOLE EXTRAS	Integrated reading rack, energy saver mode, audio in/out
PROGRAMS	13 total — manual, fat burn, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate, Sprint 8, VirtualActive American Northeast, Virtual Active Northern Rockies, iFit, custom
WORKOUT FEEDBACK	Time elapsed, time goal, time remaining, clock, miles /kilometers, RPM, current speed (MPH / KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour,METS, resistance, last resistance
ASSEMBLED WEIGHT	5.5 kg / 12 lbs.
